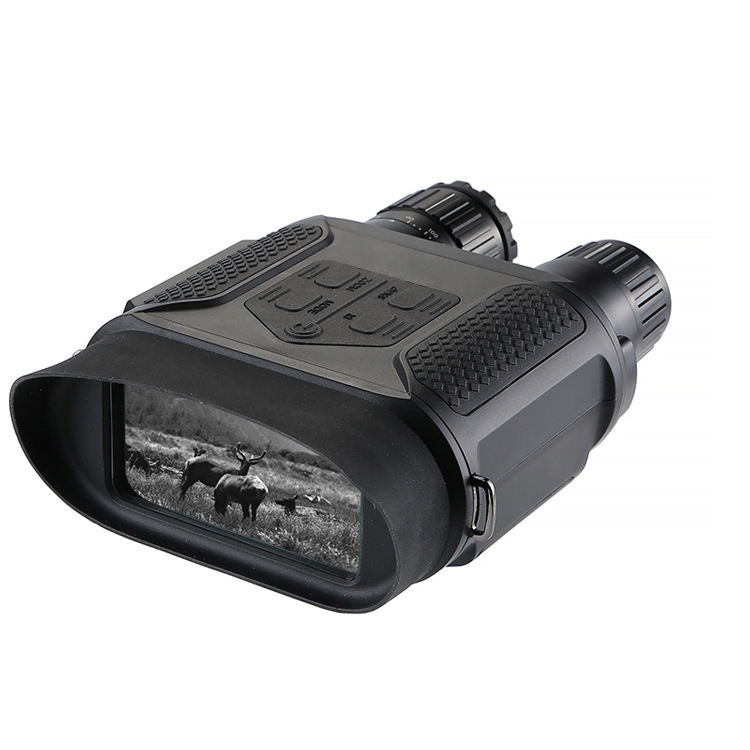

Digital Night Vision Binocular NV400B
Product name : Digital Night Vision Binocular NV400B
Details :
| ID |
Catalog |
Function Description |
| 1 |
Optical performance |
Magnification power 3.5 X31 (MAX 7x) |
| 2 |
Digital Zoom 2 steps magnification, Max 2x |
| 3 |
Angle Of View 9° |
| 4 |
Objective Aperture 31mm |
| 5 |
Exit Pupil Distance 30mm |
| 6 |
F# for Objective lens 1.2 |
| 7 |
3m~∞ in daytime; Viewing in the darkness up to 400M (monochrome) |
| 8 |
Eyepiece magnification 2x |
| 9 |
Video Output |
320x240 resolution TFT LCD |
| 10 |
OSD menu display |
| 11 |
CVBS always output with VGA resolution |
| 12 |
Imager |
Wide Dynamic Range High-sensitivity CMOS Sensor |
| 13 |
Size 1/3'' |
| 14 |
Resolution 640X480 |
| 15 |
IR LED |
3W Infared LED with 850nm |
| 16 |
Micro SD Card |
Support SDHC 4GB~32GB SD Card |
| 17 |
Hardware Buttons |
Power on/off |
| 18 |
Snap |
| 19 |
Mode selection |
| 20 |
Zoom |
| 21 |
IR switch |
| 22 |
Operation |
Preview |
| 23 |
Record JPEG file in SD storage |
| 24 |
Capture JPEG file in SD storage |
| 25 |
Playback media file from SD storage |
| 26 |
Power |
External power supply - DC 5V/1A |
| 27 |
8 pcs AA battery 4.5V-6V |
| 28 |
Battery life: 6 hours working time with IR off |
| 29 |
Battery low warning |
| 30 |
System |
4 modes (Capture, Video, Playback) |
| 31 |
Single frame Image Capture |
| 32 |
Video image Record |
| 33 |
Playback image |
| 34 |
Delete image |
| 35 |
5 level IR switch |
| 36 |
SD card format |
| 37 |
Power save (Off/1 min/ 3min/50 min) |
| 38 |
Language: English /Trad. Chinese /Simp. Chinese /Japanese /
French /Deutsch /Korean /Italian /Portuguese /Russian / Spanish / Arabic |
| 39 |
System Rest |
| 40 |
Light Freq. 50/60HZ |
| 41 |
Date Input |
| 42 |
Version |
| 43 |
Size |
size 210mmx145mmx65mm |
| 44 |
Net weight 750g (without battery) |
| 45 |
package |

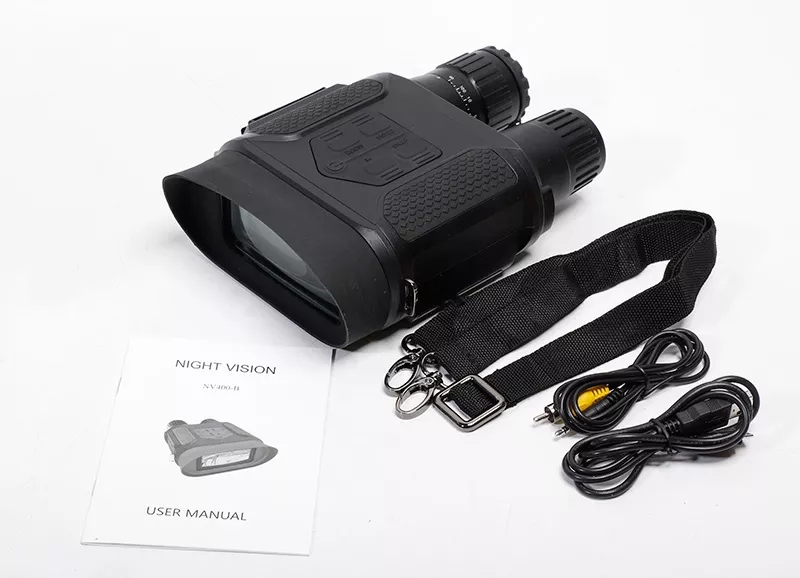

USB cable/ AV cable/ TF card/ Bag/Manual |
