Digital night vision devices NV150
Product name : Digital night vision devices NV150
Details :
| Catalog |
Function Description |
| Optiacal performance |
Magnification power 3.5~9X21 |
| Digital Zoom magnification, Max 2.6x |
| Angle Of View 10° |
| Objective Aperture 20mm |
| Exit Pupil Distance 18mm |
| F# for Objective lens 1.3 |
| 3m~∞ in daytime (color); Viewing in the darkness up to 200M (monochrome) |
| Diopter adujustment +100°~ -400° |
| Video Output |
320x240 resolution TFT LCD |
| OSD menu display |
| CVBS always output with VGA resolution |
| Imager |
CMOS High-sensitivity Sensor |
| Size 1/4'' |
| Resolution 640X480 |
| IR LED |
3W Infared LED with 850nm |
| Micro SD Card |
Support SDHC 4GB~32GB SD Card |

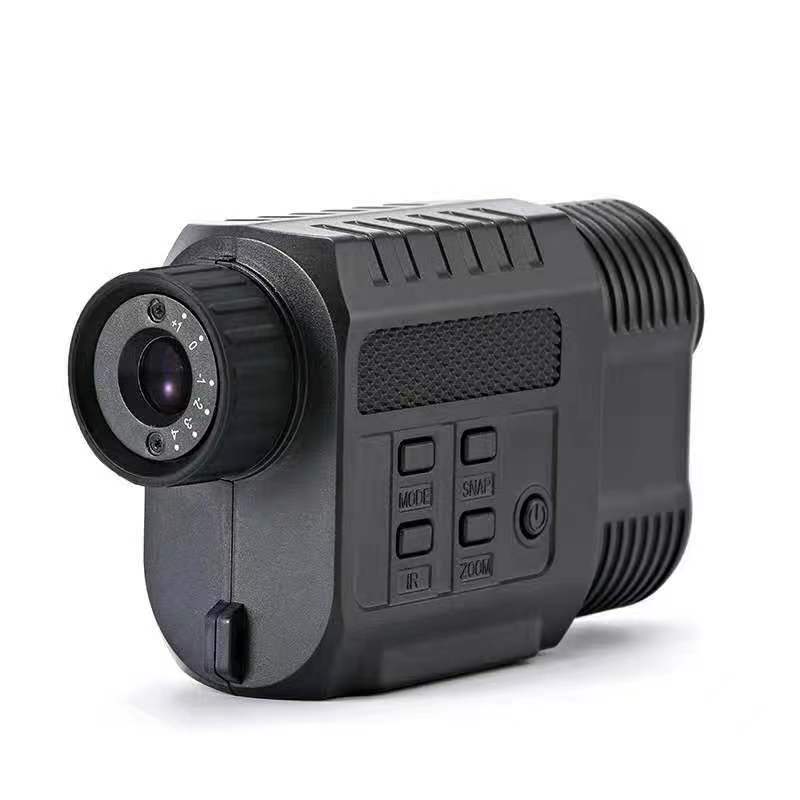

| Hardware Buttons |
Power on/off |
| Snap |
| Mode selection |
| Zoom |
| IR switch |
| Operation |
Preview |
| Record AVI file in SD storage |
| Capture JPEG file in SD storage |
| Playback media file from SD storage |
| Power |
External power supply - DC 5V/1A |
| 4 pcs AA battery 4.5V-6V |
| Battery life: 6 hours working time with IR off |
| Low battery warning |
| System |
4 modes (Capture, Video, Playback,Menu) |
| Single frame Image Capture |
| Video image Record |
| Playback image |
| Delete image |
| 5 levels IR switch for USB power,3 levels IR switch for battery. |
| Auto Power Off (Off/1 min/ 3min/5 min) |
| Language: English /French/ Spanish/Portuguese/Deutsch/9 LANGUAGES |
| TV mode(PAL/NTSC) |
| Light Freq. 50/60HZ |
| Format |
| LCD Brightness 4 Levels |
| Version |
| Size |
size 144mmx85mmx46mm |
| TBD |
| package |

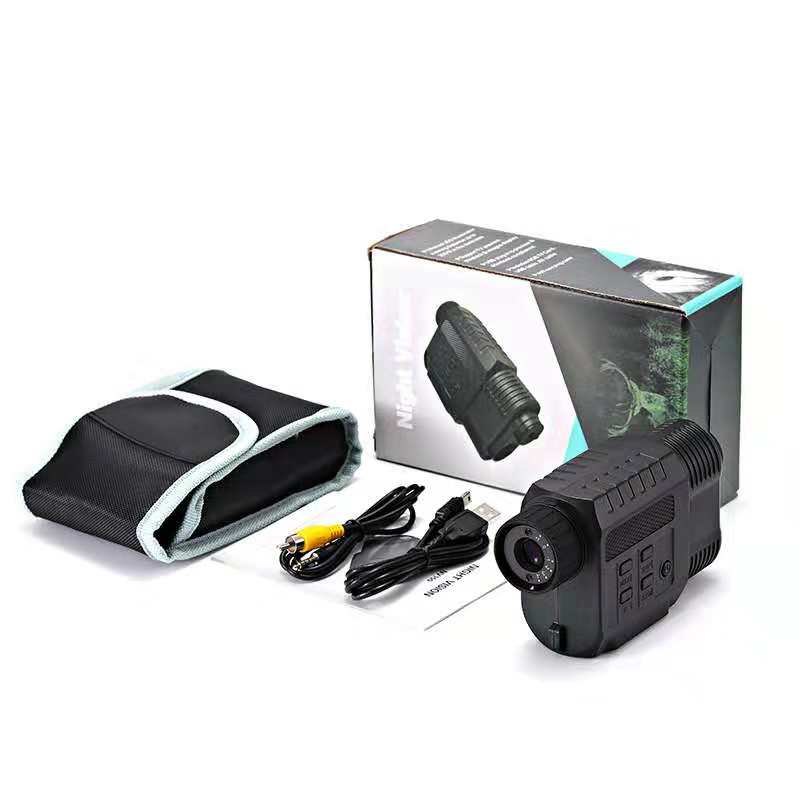

USB cable/ AV cable/ Micro SD card/ Bag/Manual |
